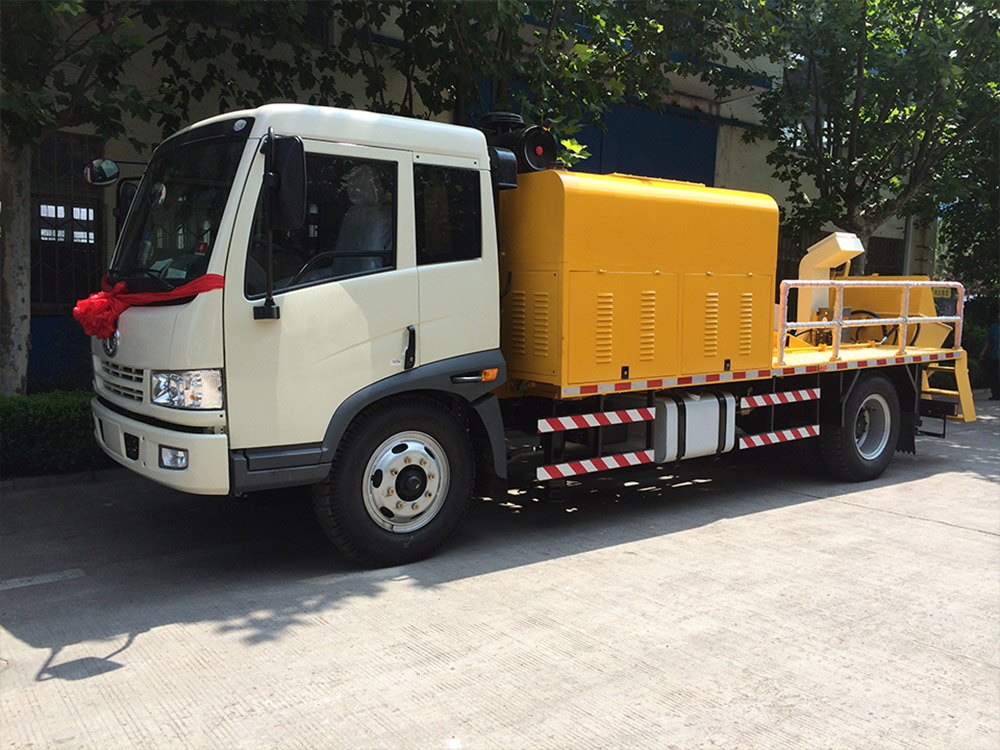

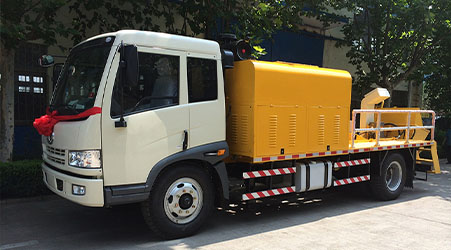

What Is Truck Mounted Concrete Line Pump
It refers to a concrete line pump installed on the chassis of a heavy vehicle, which is easy to move and flexible. It integrates the advantages of the towed pump and the concrete pump truck, without needing transportation and installation. It is suitable for small batches, multiple construction sites, narrow construction sites and ready-to-go conditions.

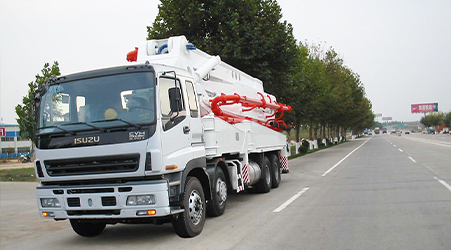

The truck mounted concrete line pump is widely used in the high-rise buildings, roads, overpasses, bridges, airports, rail transits and tunnels. Another truck mounted concrete pump is truck mounted boom pump, that is, concrete boom pump truck.
Main technical parameters of Truck Mounted Line Pump
Parameter | Unit | HBC80.18-176RA | HBC90.18-195RA | HBC100.13-195RA |
Max. Theo. concrete output (H/L.) | M^3/h | 57/88 | 62/93 | 88/105 |
Max. Concrete pumping pressure (H. /L.) | MPA | 18/9.6 | 18/9.6 | 13/9 |
Max. Theo. delivery distance( vertical/horizontal) | M | 350/1600 | 350/1600 | 250/1100 |
Distribution valve type | S valve | S valve | S valve | |
Diesel engine model | KW | 176/ Dalian DEUZ | 195/ Dalian DEUZ | 195/ Dalian DEUZ |
Rotate speed | rpm | 2300 | 2300 | 2300 |
Main oil pump specification | REXRATH 260 | REXRATH 260 | REXRATH 260 | |
Delivery cylinder (diameter; stroke) | mm | ￠230*1600 | ￠230*1600 | ￠230*1600 |
Oil cylinder (diameter; stroke) | mm | ￠150*1600 | ￠150*1600 | ￠140*1600 |
Lubricating System | Two pump two return open system | Two pump two return open system | Two pump two return open system | |
Hopper capacity | M3 | 0.68 | 0.68 | 0.68 |
feeding height | mm | 1240-1450 | 1250-1450 | 1250-1450 |
Capacity of oil tank | L | 500 | 500 | 500 |
Chassis | DONGFENG | DONGFENG | DONGFENG | |
Dimensions：length×width×height | mm | 8754*2470*3056 | 8754*2470*3056 | 8754*2470*3056 |
Total weight | kg | 12000 | 12000 | 12000 |
Technical characteristics of truck-mounted concrete pump for Sale
Hydraulic system: We adopt the double open hydraulic loops system. For the pump parts, we adopt the famous brand REXRATH. And for the valves parts, we adopt the brand American Eaton.

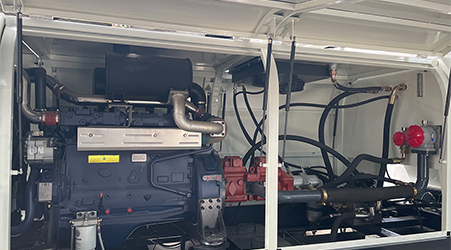

Power system: We adopt Dalian DEUTZ and WEICHAI DEUTZ engine system. So it has the characteristic of high cost performance, strong power, energy saving, and repair timely.
Chassis: We adopt the domestic famous brand: DONGFENG chassis.
S tube: Is made of high manganese steel molding, with high wear-resistant materials of the runner. Glasses plate and cutting ring adopts unique hard alloy material and technology, makes the surface hardness and toughness increased significantly prolong service life.
Control system: Operating system is wired and wireless remote control, the operation is flexible, convenient. Adopts imported five curve of a diesel engine throttle calculation automatic control modulation, energy saving more than 20%.
Sealing performance:The sealing parts of the main oil cylinder are made by PARKER Company of the US, and the inside of the concrete cylinder is covered with a thickened chromium coat, which ensures that 20,000 m³ of concrete can be successfully pumped without any problems.
