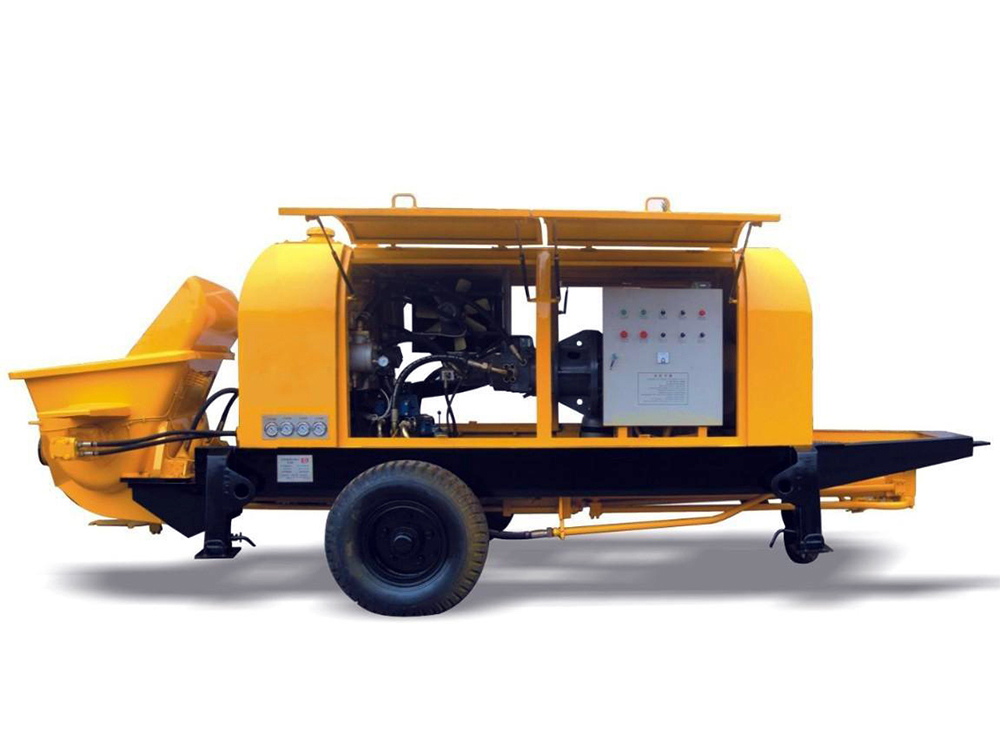

What is HBS50 static concrete pump
It is a main model of concrete line pump, which needs to reply on pipelines to pump concrete to the specified sites.It can realize automatic change of high/low pumping pressure. The maximum vertical and horizontal distance is 160 meter and 600 meter. The chosen parts from international famous brand ensure its stable working performance and long service life.
Main technical parameter of HBTS50 line pump truck
Items
| Units
| Parameters | ||
HBTS50-12-82R | ||||
Whole performance of machine | Max. theo. concrete output (L./H.) | m3/h | 60/36 | |
Max.concrete pumping pressure (H. /L.) | MPa | 11.7/7 | ||
Distribution valve type | S Valve | |||
Concrete cylinder diameter×stroke | mm | Ф180×1300 | ||
Hopper capacity×feeding height | L×mm | 500×1300 | ||
Outlet diameter | mm | Ф150 | ||
Power system | Diesel engine model | Weichai Deutz | ||
Electrical engineering power | kW | 82 | ||
Rotate speed | r/min | 2100 | ||
Hydraulic system
| Circuit type | Open circuit | ||
Pumping system pressure | MPa | 31.5 | ||
Mixing system pressure | MPa | 6-8 | ||
Capacity of oil tank | L | 370 | ||
The biggest transportation is away from vertically (/Level) | m | 160/600 | ||
Other parameters | Max. aggregate diameter | mm | Slick scree: 50 Scree: 40 | |
Inside diameter of delivering pipe | mm | Ф125 | ||
Dimensions：length×width×height | mm | 5000×2100×2260 | ||
Total weight | kg | 4000 | ||
Main configuration
Name | HBTS50-12-82R |
Diesel engine model | 82kw |
Circuit type | Double hydraulic open loops with two pumps |
Main hydraulic pump | Kawasaki K3V112 |
| Main valve and control valve block | Beijinghuade |
| Agitator motor | ningbo |
Pumping cylinder | Φ110/80×1300 |
Concrete cylinder | Φ180×1300 |
Wear plate and cutting ring | Excellent wear resistancE
|
Lubrication system | Manual lubrication pump/double-distributor |
Mixing auto-reverse | Yes |
| Radiator | Air-cooled |
High-low pressure switch | Yes |
Features
1. Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler.
2. ØHydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.
3. ØCone sealing of all pipes make the pipe joints seal reliably.
4. ØThe high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.
5. ØCompared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.
6. ØThe wire remote equipment is convenient for operation far away.
7. ØThe design of hopper and S valve and so on adopt Ｉ－DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
8. ØThe agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.
9. The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealings.
10. The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status.
