What is mini concrete pump truck

The mini concrete pump trailer features light weight and low energy consumption. It is widely used in indoor construction and construction in some narrow space occasions. The main oil pump of fine stone concrete pump-HBT20-8-30 adopts high-quality constant power variable column pump, which has high system pressure, high efficiency and balanced operation. Anothe popular model is HBT40 concrete line pump.

It adopts the state-of-the-art technologies such as open hydraulic circuit, automatic gap compensation of distribution valve, constant power control, full hydraulic automatic reversing and electric proportional control. Haomei Machinery also conducts in-depth and meticulous research experiments on concrete piston automatic lubrication and many other aspects, so our concrete pump trailer is of good comprehensive performance.

Features of HBT20 mini concrete pump

1. It adopts advanced S-pipe valve reversing, the outlet pressure is high, which can meet the high-rise and long-distance transportation of fine stone concrete.

2. The main oil pump adopts a high-quality constant power variable piston pump, which has high system pressure, high efficiency and balanced operation.

3. The S pipe valve is equipped with a floating wear-resistant ring, which automatically compensates for wear and has good sealing performance.

4. The mixing device is driven by a low-speed high-torque hydraulic motor.

5. The mixing system adopts a double-pump double-circuit open system, with fast and stable reversing speed and high efficiency.

6. Hydraulic cooling adopts advanced air cooling system.

7. It is equipped with an automatic centralized lubrication system to ensure the service life of the rotating parts.

8. The PLC electric control box adopts imported components such as Mitsubishi.

9. The voltage box is equipped with a wired remote control handle, which is easy to operate and has strong control characteristics.

10. It has a reverse pumping function to minimize pipe blockage.

11. With traction walking wheels, it is convenient to move and walk.

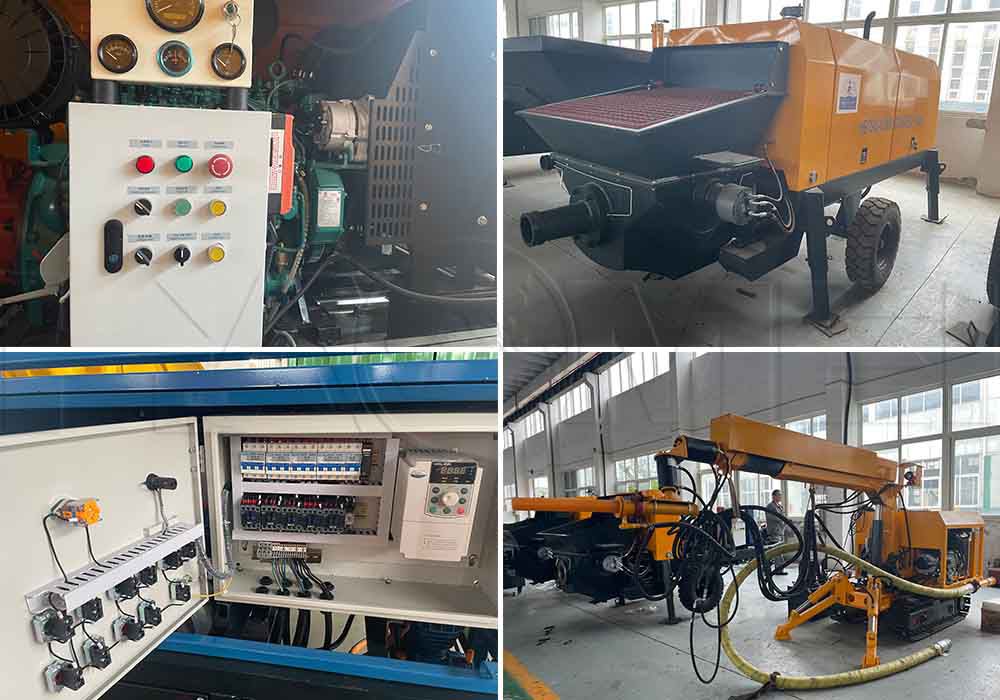

mini concrete pump truck.jpg

Technical parameter of mini concrete line pump

Parameter

Unit

Value

Theoretical concrete output

M3/h

20

Theoretical pumping pressure

Mpa

8

Distribution valve

/

S valve

Delivery pipe inner diameter

mm

125A/90A

Theoretical conveying distance horizontal/vertical

m

350/130

Concrete cylinder diameter*stroke

mm

140*750

Hopper volume/feeding height

M3/h

0.3/900

Aggregate size

mm

30

Slump range

mm

120-230

Main motor power

kw

30

Rated speed

RPM

1480

Voltage frequency

v

380

Fuel tank capacity

L

200

Cleaning method

/

High pressure cleaning

Dimensions

mm

4500*1050*1250

Weight (with oil)

kg

1900

Considerate after -sale service

1. One year guarantee and enough spare part stock.

2. We provides free technical consulting services and provide equipment solutions.

3. We provides technical professional training for free, and train operators for you for free.

4. We provides on-site free installation and commissioning

5. We provide on-site free operation guidance and on-site 24-hour tracking service for half a month.

6. We have a complete product quality tracking record to ensure regular visits to the products you purchase for maintenance, so as to minimize your worries.

7. 24-hour online after-sales service.
