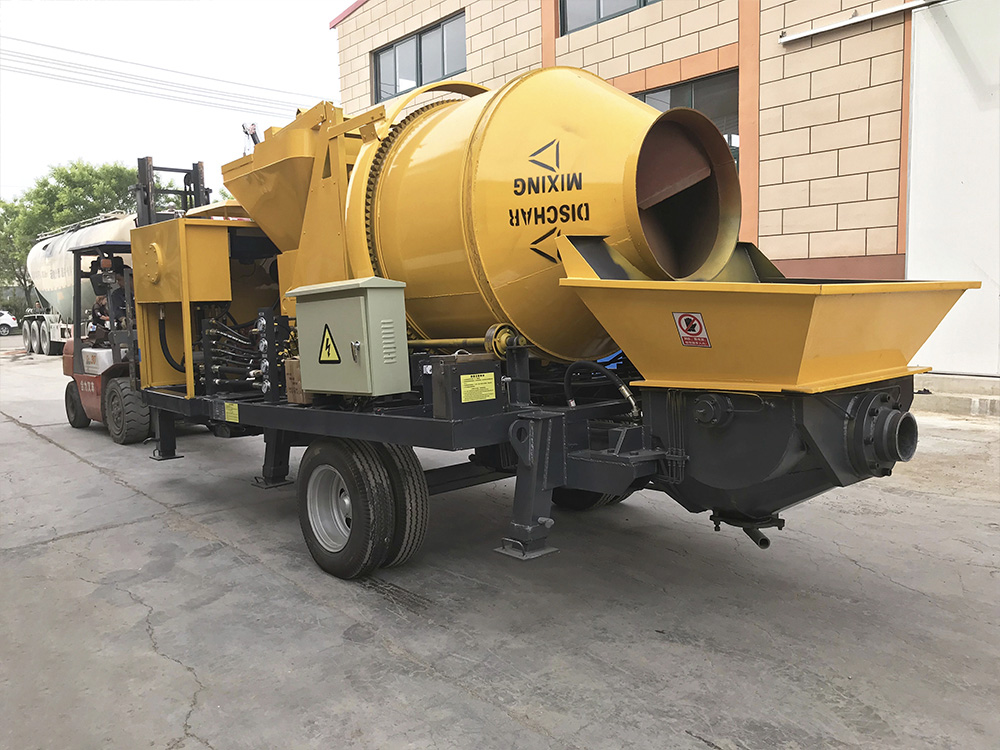

What is concrete mixer pump trailer

The diesel concrete mixer pump trailer is concrete mixer pump of diesel power. As a concrete construction machine invented in China, the mixer pump deals with aggregates of 30mm big and above. The capacities include 40m3, 50m3, 60m3, 80m3, 90m3 and 100m3. If you need smaller capacities like 20m3 and 30m3, Haomei can supply them, too. But the aggregate size they can tackle becomes smaller: less than 20mm. Trailer pumps of 30m3 is known as fine stone pumps rather than concrete pumps, though people tend to call them in this way.

Parameters of concrete mixer with pump for sale

Item BS25-08-56R BS30-10-56R HBTSA40-10-66R HBTSB40-10-66R
Oil pump Rexroth Rexroth FLUTEK FLUTEK
Oil pump outlet (ml/r) 71 71 112 112
Theoretical pressure high/low 25 30 40/27 40/30
Motor Delille 4100 Delille 4100 Delille 66 Delille 66
Main cylinder dia. stroke(mm) Φ80/845 Φ80/845 Φ100/1300 Φ100/1300
Concrete cylinder dia. stroke(mm) Φ140/845 Φ140/845 Φ160/1300 Φ180/1300
Hydraulic pipe MAULI MAULI MAULI MAULI
Sealing PARKER PARKER PARKER PARKER
Electric control system Schneider Schneider Schneider Schneider
PLC unit Omron Omron Omron Omron
Remoter wireless wireless wireless wireless
High/low pressure switch no no yes yes
Valve units Huade Huade Huade Huade
Pumping distance hori/vertical(mm) 300/120 400/160 600/180 600/180
Pressure meter Germany Germany Germany Germany
Button Schneider Schneider Schneider Schneider
Lubricating system Full hydraulic Full hydraulic Full hydraulic Full hydraulic
Outlet diameter(mm) Φ100 Φ100 Φ125 Φ150

Parameters of Haomei diesel trailer mounted concrete pump mixer

Item HBTSC40-12-82R HBTS60-12-82R HBTS80-16-129R HBTS80-13-129R
Oil pump FLUTEK FLUTEK FLUTEK FLUTEK
Oil pump outlet (ml/r) 112 112 112*2 112*2
Theoretical pressure high/low 40/33 60/36 85/50 85/50
Motor DEUTZ 82 DEUTZ 52 DEUTZ 129 DEUTZ 129
Main cylinder dia. stroke(mm) Φ1000/1200 Φ110/1300 Φ140/1800 Φ125/1650
Concrete cylinder dia. stroke(mm) Φ180/1200 Φ180/1300 Φ200/1800 Φ200/1650
Hydraulic pipe MAULI MAULI MAULI MAULI
Sealing PARKER PARKER PARKER PARKER
Electric control system Schneider Schneider Schneider Schneider
PLC unit Omron Omron Omron Omron
Remoter wireless wireless wireless wireless
High/low pressure switch yes yes yes yes
Valve units Huade Huade Huade Huade
Pumping distance hori/vertical(mm) 600/180 600/180 1200/350 1000/280
Pressure meter Germany Germany Germany Germany
Button Schneider Schneider Schneider Schneider
Lubricating system Full hydraulic Full hydraulic Full hydraulic Full hydraulic
Outlet diameter(mm) Φ150 Φ150 Φ180 Φ180

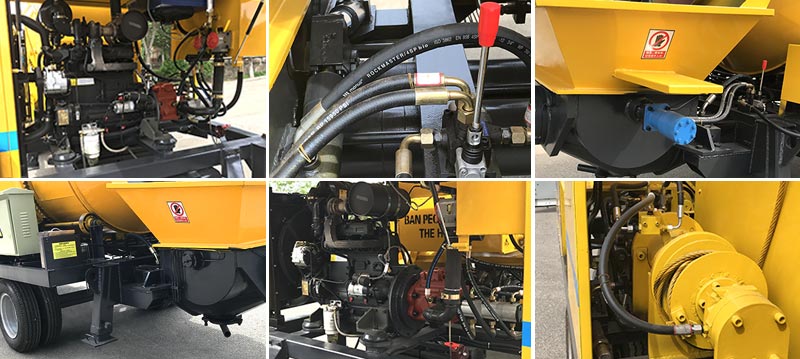

Components of a diesel trailer mounted concrete pump mixer

The S valve diesel trailer mounted concrete pump mixers have different model names. Take HBT80.13-130RS for example. HBT represents towed concrete pump, 80 the maximum theoretical volume per hour as 80 cubic meters, 13 the outlet pressure as 13 MPa; 130 the power of the diesel engine as 130 kilowatts. R represents Diesel power and S─ stands for S valve pump.

In addition, Haomei diesel trailer mounted concrete pump mixers have common features of all trailer concrete pumps, too. It has a high degree of mechanization, a simple construction organization and less labor work. Pumped concrete has strict requirements on the quality of pumped concrete. Pumped concrete is not easy to segregate and has a low slump, which can better guarantee the quality of concrete and meet the requirements of engineering construction. Last but not least, the trailer pumping is safer. Operators run a pump by a remote rather than contacting the pump directly. The construction distance of the trailer pump is long, and it can be transported to more difficult places through the pipeline arrangement.
